ESP-WROOM-02
WROOM module · based on ESP8266 (ESP8266EX) · Active unverified
- Xtensa L106
- 1× @ 160 MHz
- Wi-Fi 4
- 2 MB flash
- 11 GPIO
- PCB antenna
As an affiliate we may earn from qualifying purchases. Prices and availability are set by AliExpress.
Figures here are compiled from Espressif's official datasheets, with the source linked on each page. Mistakes are possible, so if something looks off, please report it.
The ESP-WROOM-02 is a general-purpose Espressif module built on the ESP8266 single-core Xtensa L106 SoC clocked up to 160 MHz. It pairs 2.4 GHz Wi-Fi 4 with 2 MB flash, routes the radio to a PCB antenna, and breaks out 11 GPIO; the module measures 18 × 20 × 2.8 mm.
It's a lean, low-cost option for simple connected products where board space and BOM cost matter most.
Strapping pins
⚑ flag an errorGPIOs sampled at reset; avoid driving these at power-up.
| Pin | Default | Bit | Function |
|---|---|---|---|
GPIO0 | pull-up | 1 | boot_mode |
GPIO2 | pull-up | 1 | boot |
MTDO | pull-down | 0 | boot |
Compute & memory
⚑ flag an error| CPU | Xtensa L106, 1-core |
|---|---|
| Max clock | 160 MHz |
| SRAM | — KB |
| ROM | — KB |
| Flash options | 2 MB |
| PSRAM | None |
| Co-processor | none |
Wireless
⚑ flag an error| Wi-Fi | Wi-Fi 4 |
|---|---|
| Wi-Fi bands | 2.4GHz |
| Bluetooth | — |
| 802.15.4 (Thread/Zigbee) | No |
| Antenna | PCB |
Peripherals & I/O
⚑ flag an error| Usable GPIO | 11 |
|---|---|
| ADC | 1× 10-bit |
| USB | USB-Serial(external) |
| UART / SPI / I²C / I²S | 2 / 1 / 1 / 1 |
| TWAI (CAN) | No |
| SD/MMC | Yes |
| Ethernet MAC | No |
| Touch | 0 |
Power
⚑ flag an error| Operating voltage | 2.7-3.6 V |
|---|---|
| Deep sleep | 20 µA |
Physical
⚑ flag an error| Dimensions | 18 × 20 × 2.8 mm |
|---|---|
| Pin count | 18 |
| Temp range | -40 to 85 °C |
| Mounting | SMD castellated |
| Lifecycle | Active |
Security
⚑ flag an error| Secure boot | No |
|---|---|
| Flash encryption | No |
| Crypto | — |
| Digital signature | No |
| TRNG | Yes |

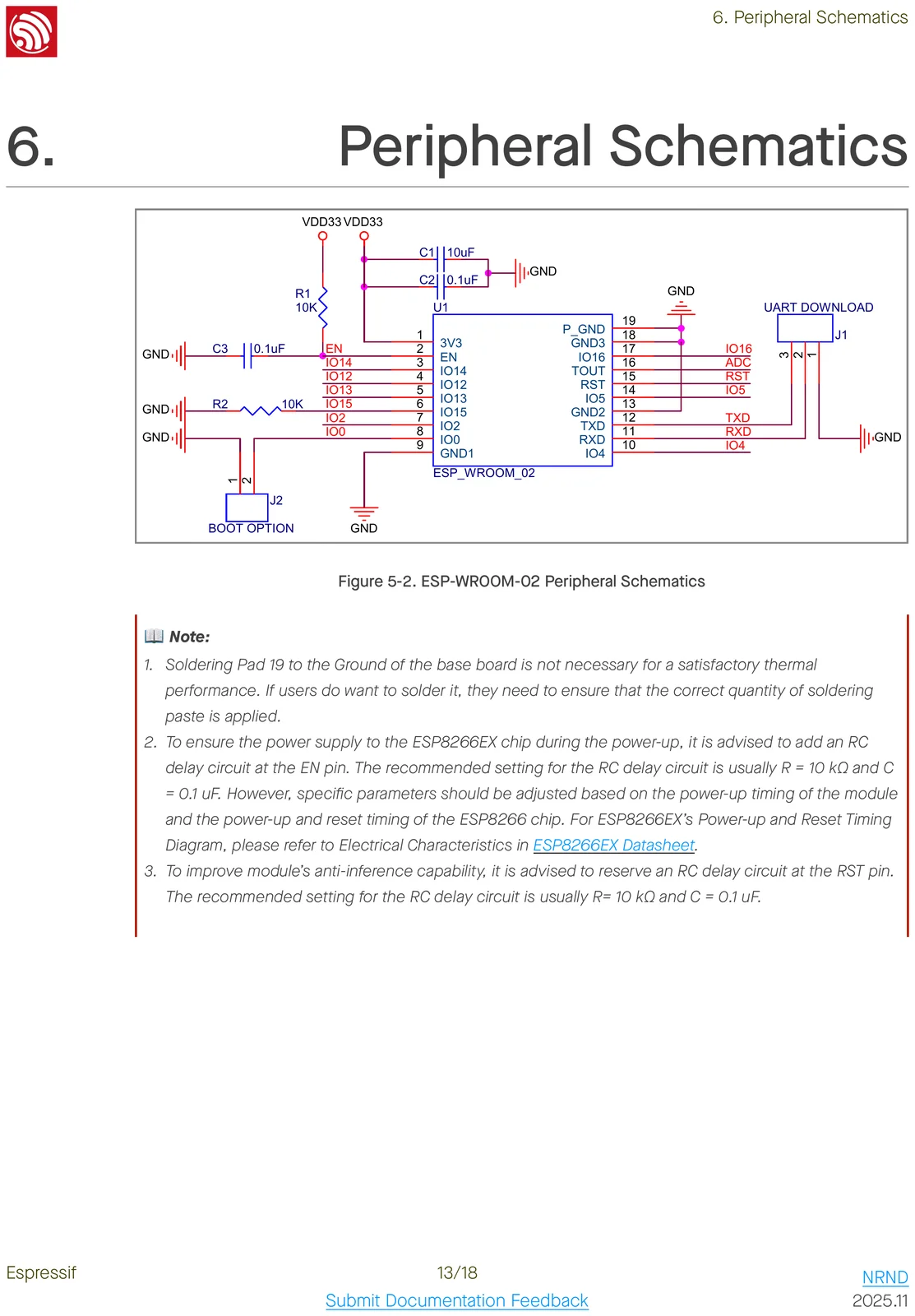

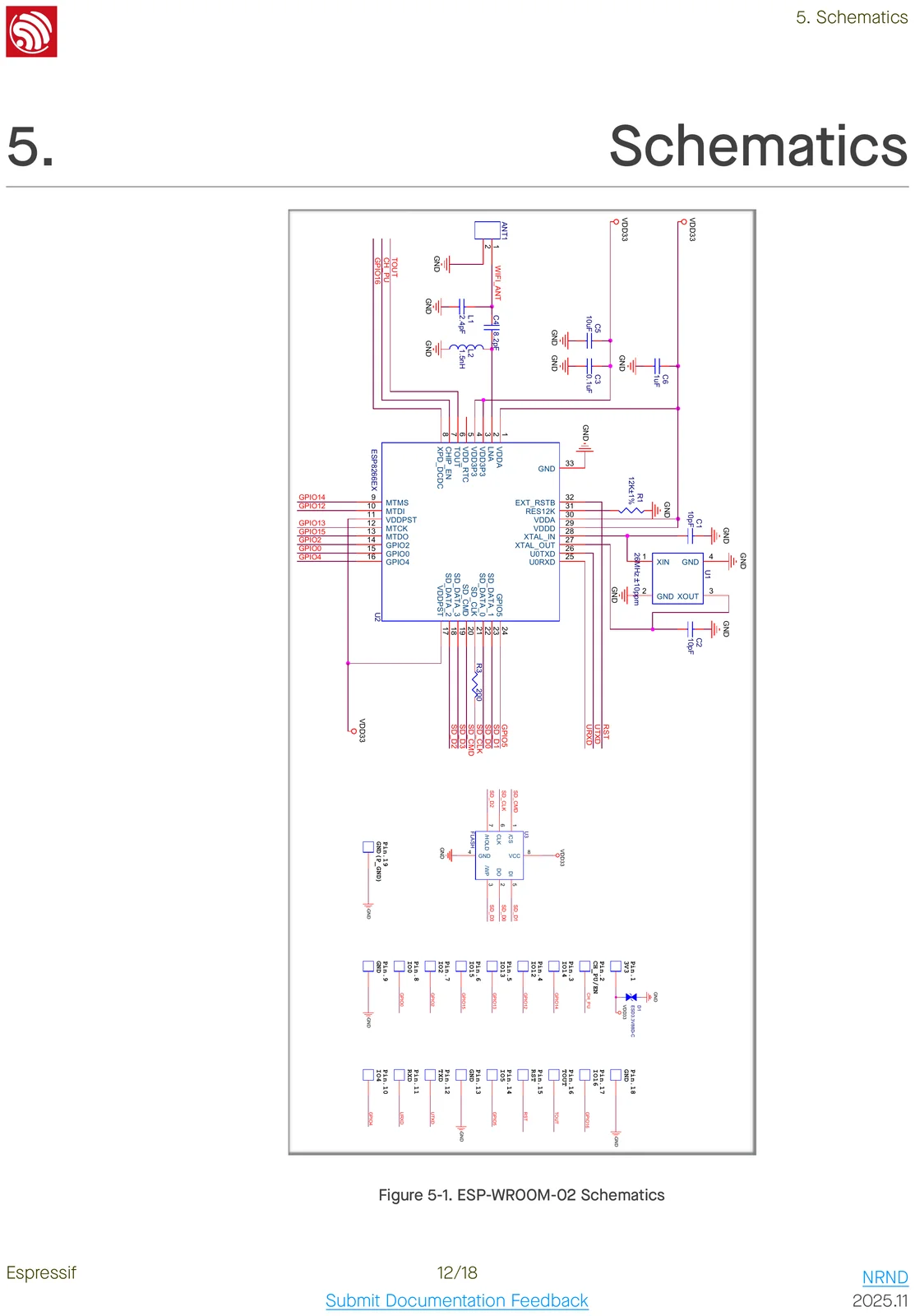

Schematics

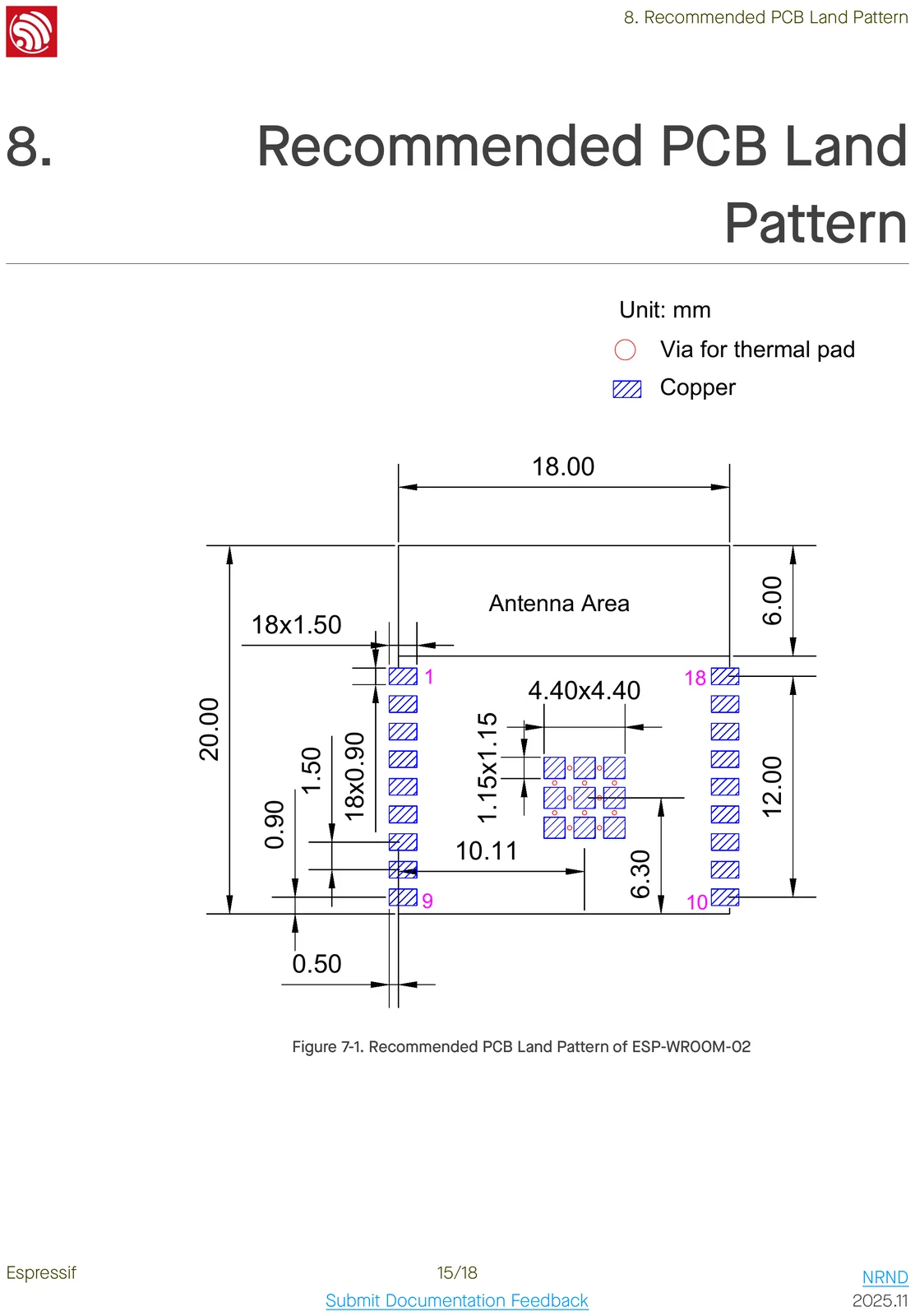

Mechanical & CAD
Getting started
Frameworks: ESP8266 Arduino core (fully supported) · ESP8266 RTOS SDK (Espressif's SDK for the ESP8266) · MicroPython.
Programming uses UART. Most dev boards include a USB-to-UART bridge; for the bare module add your own (e.g. CP2102/CH340).
Software & firmware
⚑ flag an errorPopular firmware and SDKs that run on the ESP8266, so they run on the ESP-WROOM-02 too.
